15 Inch Capacitive Touch Industrial Computer Intel i5-8365U CPU With WiFi Module Embedded Machine Tool Control PC
SPECIFICATIONS
Battery Included: Yes
Brand Name: NoEnName_Null
CPU: intel core i5-8365U
Certification: CE
Hign-concerned Chemical: None
Model Number: YTJCPQ150DR
Origin: Mainland China
Package: Yes
Plug Type: EU Plug
RAM: 4/8/16 GB
Resolution: 1024*768
SSD: 64/128/256 GB
Touch method: capacitive touch
Type: Embedded Computer

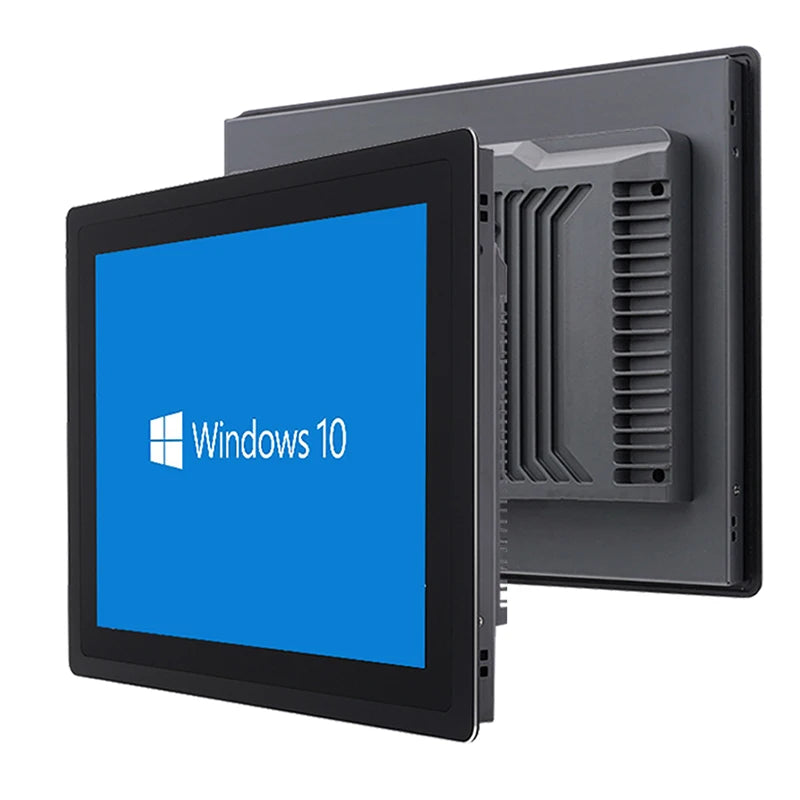

15 inch capacitive touch screen industrial computer Intel core i5-8365U CPU
Parameters
configure:
Memory : Optional 4/8/16GB RAM system memory
Storage : Optional 64/128/256/512GB SSD
Graphics : Intel HD graphics card
CPU: Intel Core i5-8365U（Dual-core,4MB cache, 2.5-3.1 GHz，TDP power consumption:15w）
System: Default installation of Windows 10 Pro operating system (optional Windows7/Linux system)
If you have any questions or need any motherboard, RAM, SSD please contact customer service
LCD screen parameters:
Brightness: 250-350cd/m2 (support higher, please contact us for details)
Contrast: 1000:1
Viewing Angle: Horizontal (Left/Right): 150° (75°/75°)
Vertical (Up/Down): 150° (75°/75°)
Response time: 30 (Typ.)(Tr+Td) (ms)
Frame rate: 60Hz
Color system: PAL/NTSC
System Power Requirements: +12V DC Power Input
Power Adapter: Input: 100~250VAC, 50/60Hz
Output: DC 12V 5A
Operating temperature: -20°C~60°C
Relative humidity: 0%~90% relative humidity, no condensation
Plug: AU, EU, USA, UK plugs available
VISA hole pitch: 75*75mm

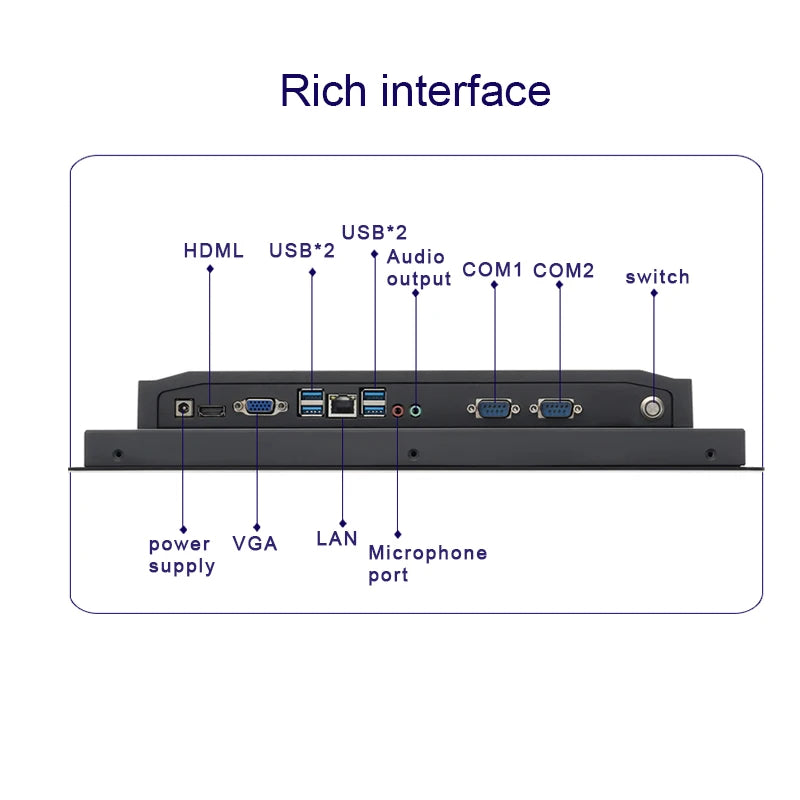

Interface display

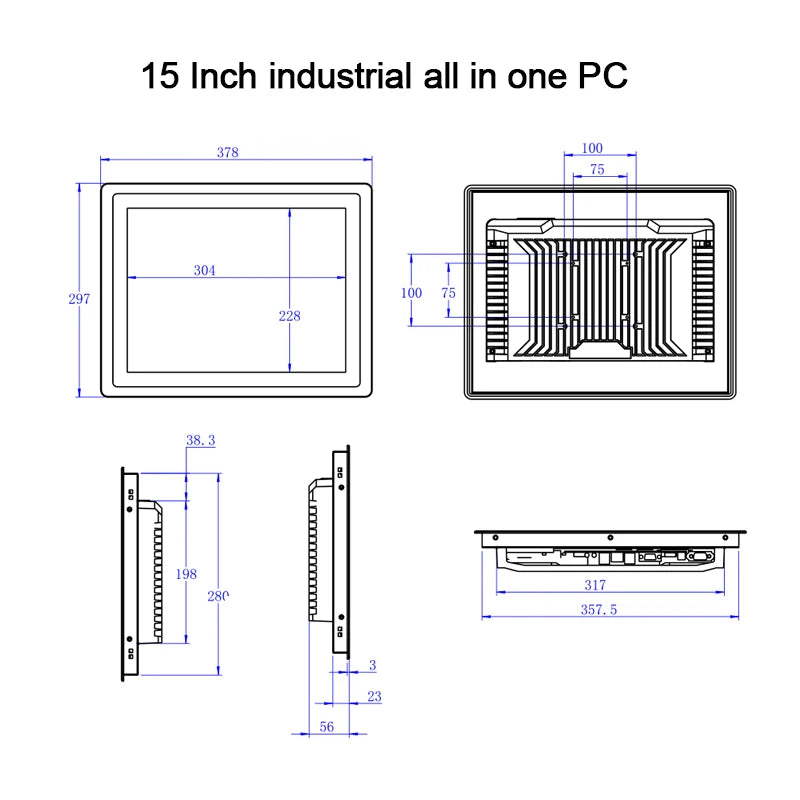

Product Size
Size:15 inch
Resolution:1024*768 ppi
Front panel With Dust and water resistant Functionality
Dust, water and oil resistant to break through environmental restrictions, more suitable for use in the harsh environment of industrial automation equipment

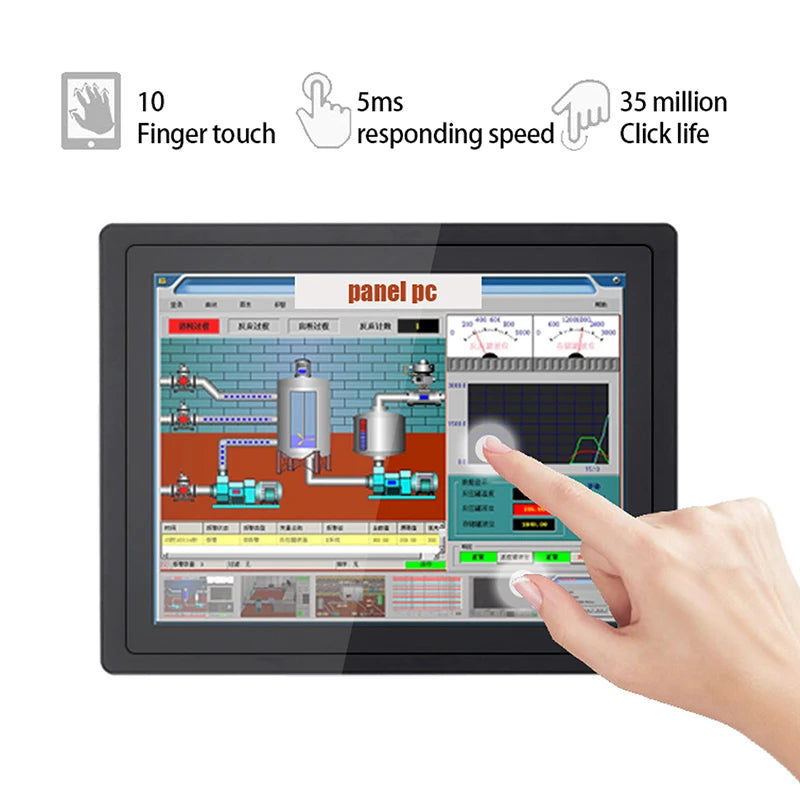

Ten-finger capacitive touch screen
Capacitive multi-touch for fast operation when your finger clicks anywhere on the system interface. Touch without drift, providing you with a more convenient touch platform

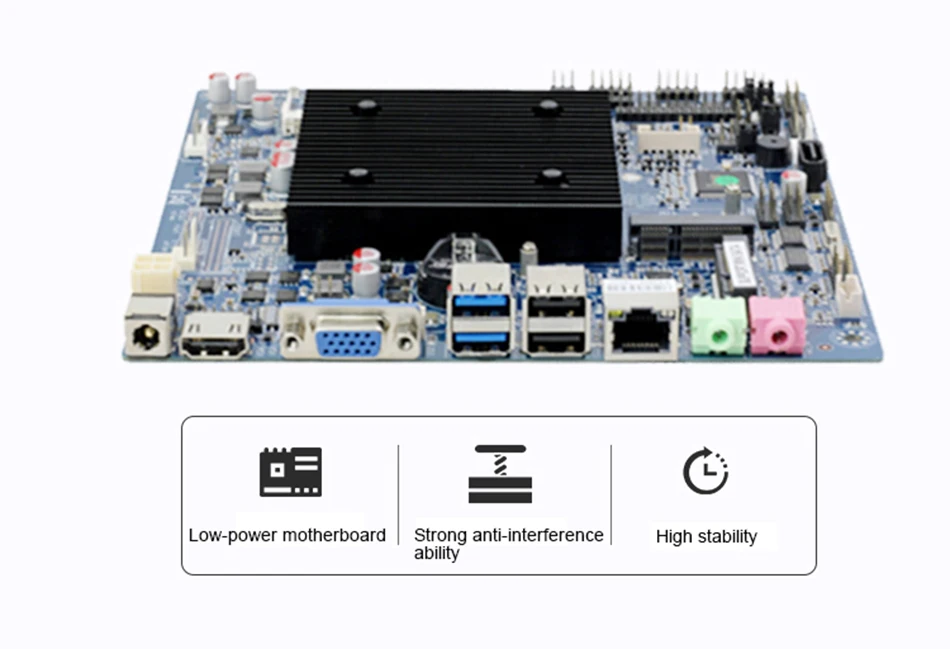

Industrial motherboard performance is more stable
Professional industrial motherboard, low-power chipset.
Energy saving, low consumption, equipped Intel i7/i5/i3,
4 cores and dual cores, you can choose,
the performance of components is stable,
suitable for various complex and harsh environments
Runs 24 hours a day
The whole machine has the ability to run 24 hours a day, and is competent in all walks of life. It can be set to power on through the BIOS. It is suitable for an unstable environment that needs to be continuously powered on.

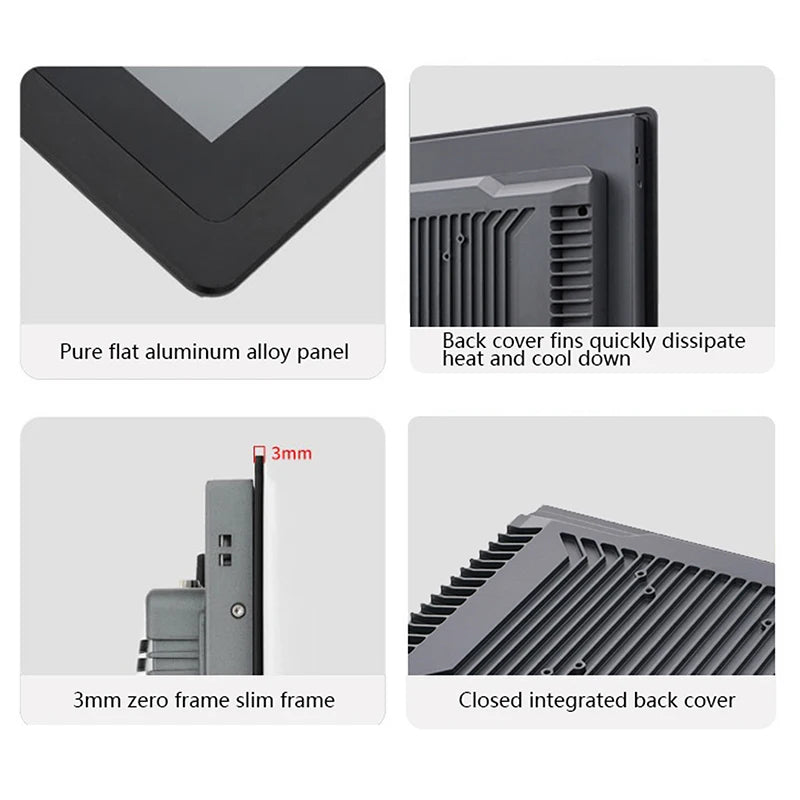

Industrial-grade sheet metal heat dissipation design
Heat dissipation through the metal back shell,
Technological breakthrough, low noise cooling effect, better stability and strong performance,
Effectively protect the life of the accessories of the whole machine
The whole machine is dustproof, compressive, high and low temperature resistant
Through the controllable high temperature test, the product adapts to the temperature of -20℃~60℃.
In between, even in harsh environments, there is no fear
Installation method
Easy and simple installation, one-click boot to use
Flush Mount / Wall Mount
Diversified applications
Business Management, Informaltion Publishing System, Builcding Auiomation, Healthcare Computing, Industrial Automafion Control Factory testing, medical, elevator, elevator, commercial office, etc. Multiple personal and public places, ral transporaion, navigation Airspace, the military's national defense preferred.
