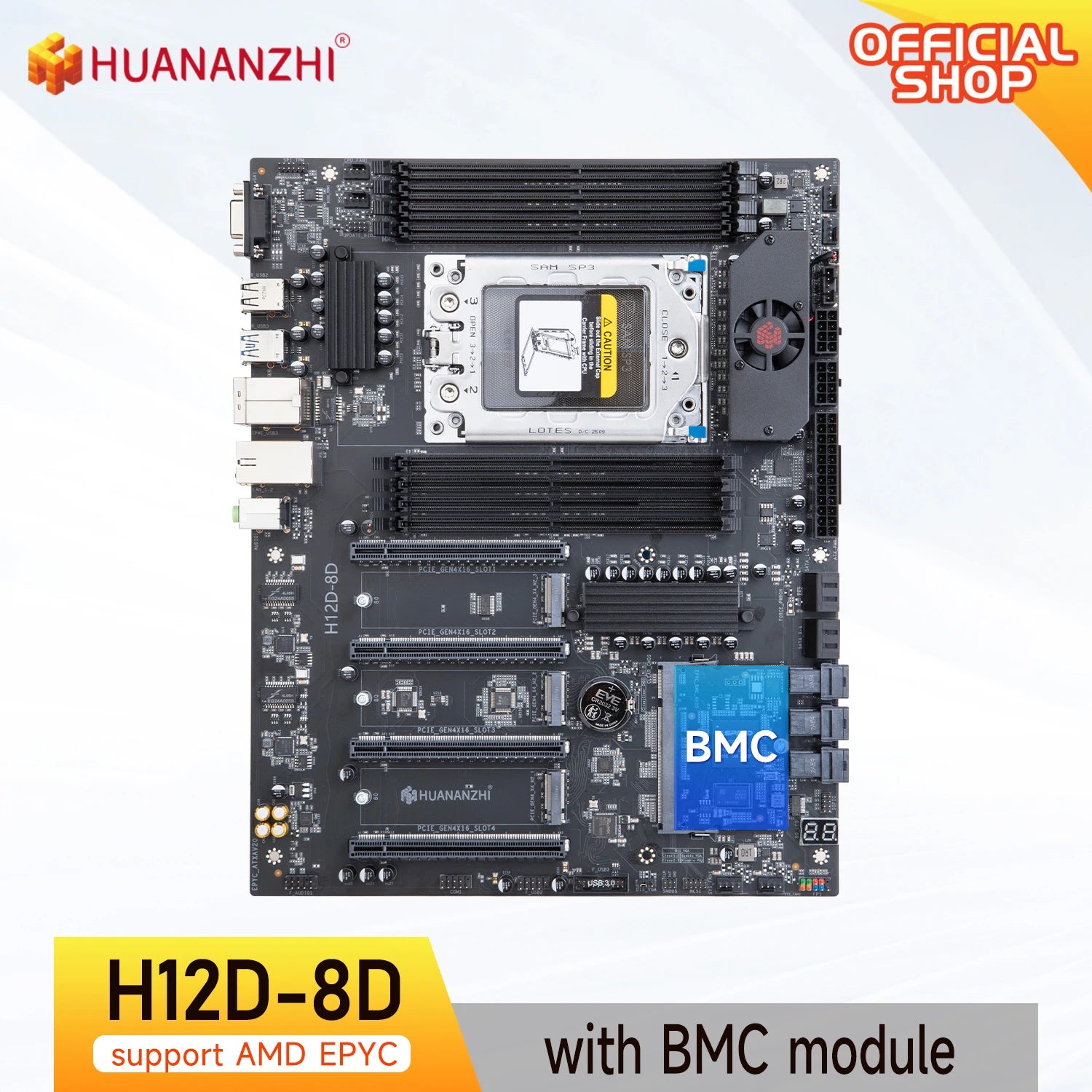

HUANANZHI H12D 8D AMD Motherboard with BMC module support AMD EPYC 7002 7003 series CPU 8 channel memory Dual 2.5G network IPMI

HUANANZHI H12D 8D AMD Motherboard with BMC module support AMD EPYC 7002 7003 series CPU 8 channel memory Dual 2.5G network IPMI

$648.80
Default Title

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: HUANANZHI

Chipset: AMD

Chipset Manufacturer: AMD

Form Factor: ATX

Hign-concerned Chemical: None

Maximum Ram Capacity: 512GB

Memory channel: Four

Number Of Memory Slots: 8

Number of M.2: 3

Number of PCI: 0

Number of PCIe x 16: 4

Onboard LAN: 2x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: AMD Others

RAID Supported: No

Socket Type: AM4

Special Features: None

Storage Interface Type: SATA 3

Support Memory Type: DDR4

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Workstation,Scientific Computing

With CPU: No

If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

We promise to test and deliver the order you submitted within 24 hours

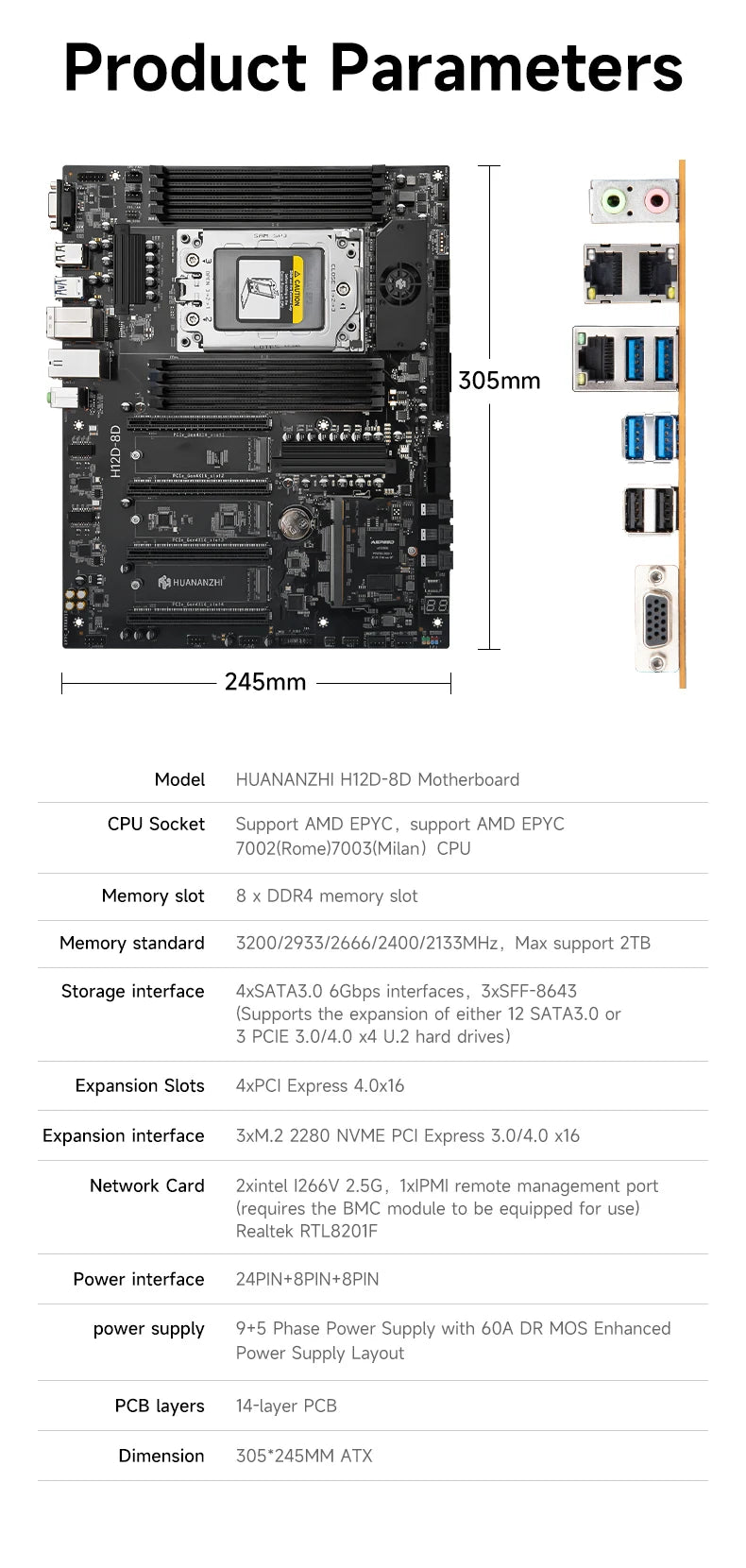

Specifications:

Model：HUANANZHI H12D 8D Motherboard （With BMC module）
Main chipset：AMD series ... Etc chipset shipped randomly
CPU Socket：AMD EPYC Platform Processor Supports AMD EPYC 7002 (Rome) 7003 (Milan) processor
Memory slot：8 x DDR4 memory slot
Memory standard：Support 8 channel DDR4 3200/2933/2666/2400/2133MHz Memory(Depends on CPU)，Max support 2TB
Storage interface：4xSATA3.0 6Gbps interfaces，3xSFF-8643（Supports the expansion of either 12 SATA 3.0 6Gbps ports or 3 PCIE 3.0/4.0 x4 U.2 hard drives）
Expansion Slots：4xPCI Express 3.0/4.0 x16
Expansion interface：3xM.2 2280 NVME PCI Express 3.0/4.0 x16
Soud Track：Realtek High Fidelity Audio
Network Card：2xintel I266V 2.5G，1xIPMI remote management port (requires the BMC module to be equipped for use)
Power interface：24PIN+8PIN+8PIN
FAN PIN：6xFAN PIN，CPU_FAN1 SYS_FAN Temperature control adjustment can be set through the BIOS
SYS_FAN1 to SYS_FAN4 need to be adjusted through the BMC management interface."

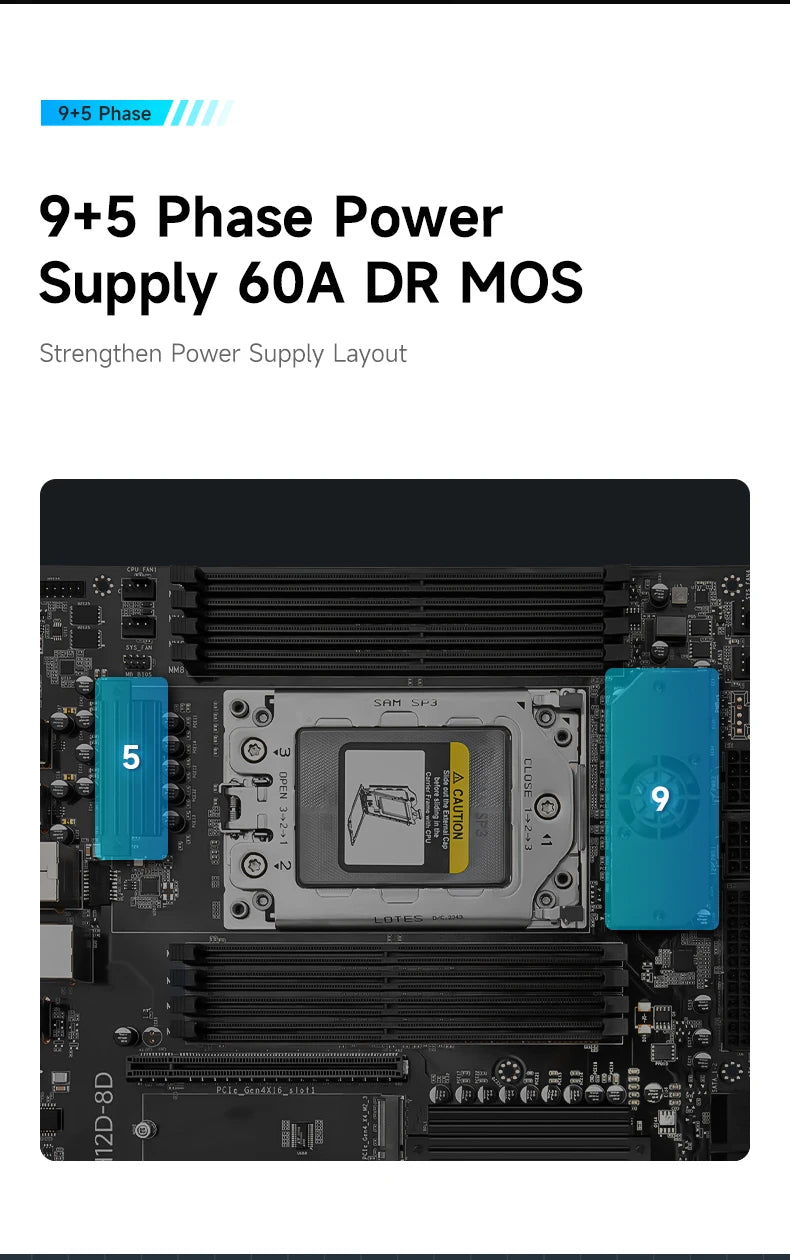

power supply：9+5 Phase Power Supply with 60A DR MOS Enhanced Power Supply Layout
PCB layers：14-layer PCB
Dimension：305*245MM ATX
Rear panel interface：4xUSB3.2 Gen1，2xUSB2.0，1xVGA，3x RJ45，1x2-hole audio interface
Front panel interface：1 xUSB3.2 Gen1 PIN，1x USB2.0 PIN，1 x Front audio PIN，1 xCOM PIN，1xSMBUS PIN，1xNCSI PIN，1xPMBus PIN，1xMB_BIOS PIN,1xDE_BUG diagnostic card，1xPower-on/Restart PIN

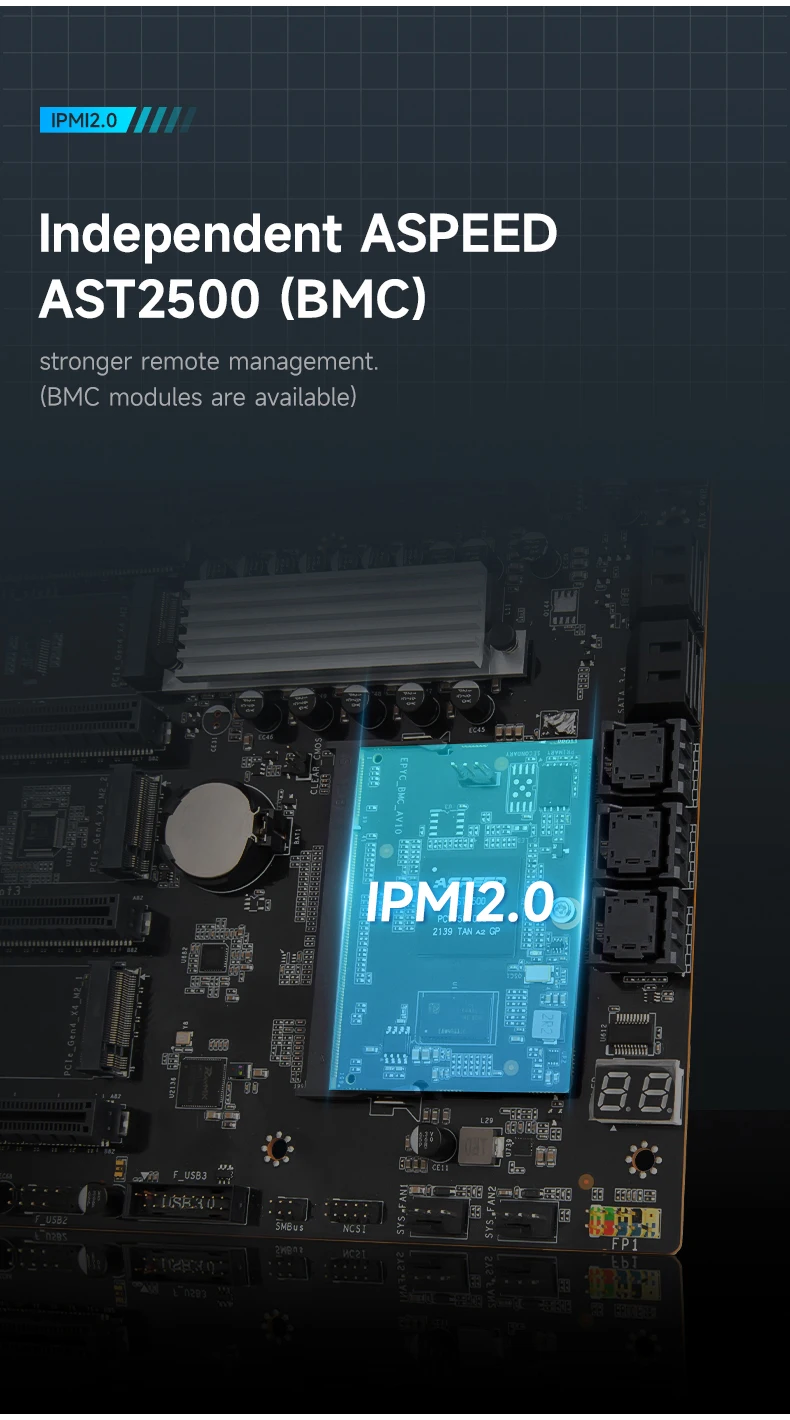

Mgmt Console：supporting IPMI 2.0
Support system：Windows/Linux
BIOS：AMI UEFI BIOS

Before Packaging

Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
