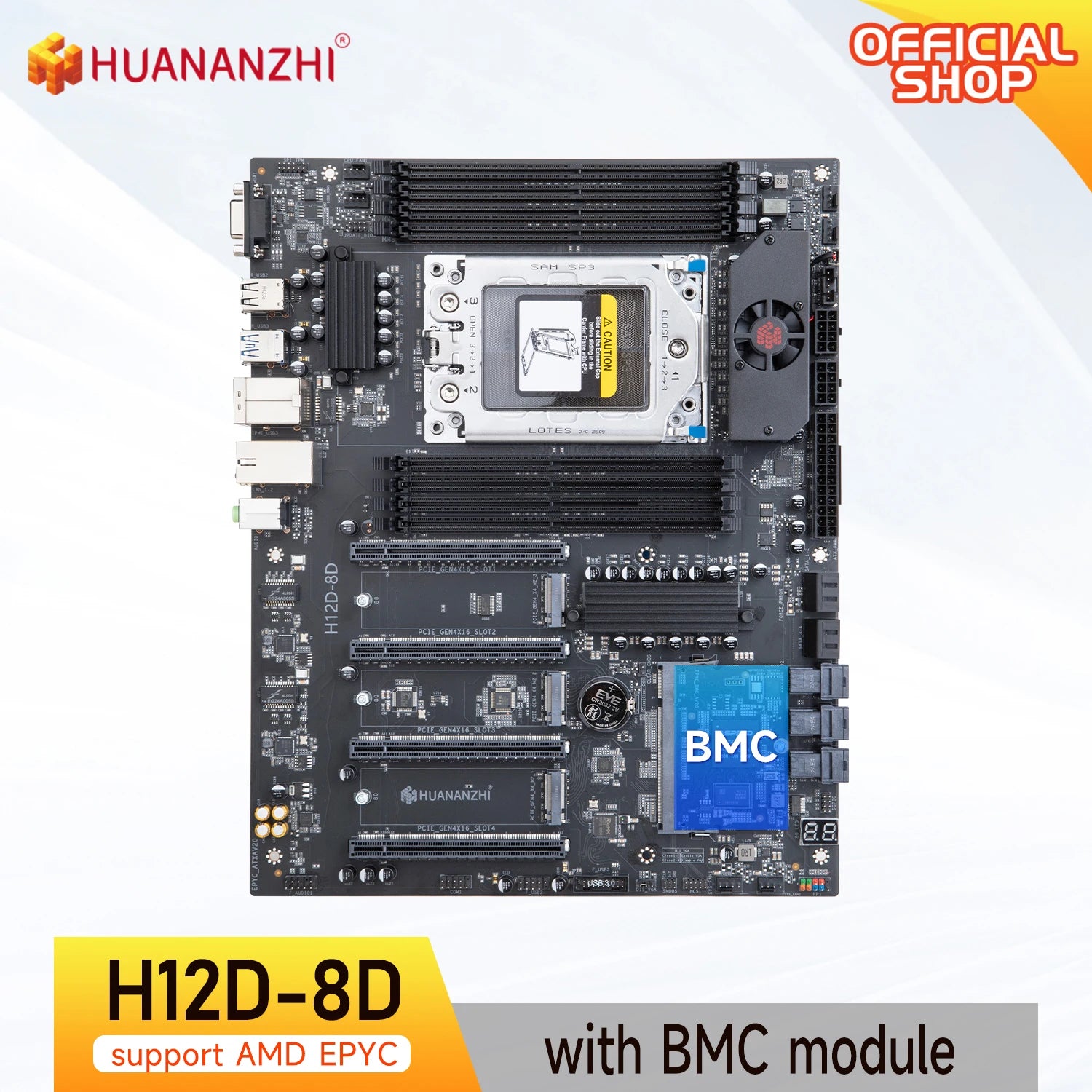

HUANANZHI H12D 8D AMD Motherboard with BMC module support AMD EPYC 7002 7003 series CPU 8 channel memory Dual 2.5G network
SPECIFICATIONS
Application: Desktop,Server
Back I/O Ports: 1x RJ45
Battery Included: No
Brand Name: HUANANZHI
Chipset: AMD
Chipset Manufacturer: AMD
Choice: yes
Form Factor: ATX
Hign-concerned Chemical: None
Maximum Ram Capacity: 512GB
Memory channel: Four
Number Of Memory Slots: 8
Number of M.2: 3
Number of PCI: 0
Number of PCIe x 16: 4
Onboard LAN: 2x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Processor compatibility: AMD Others
RAID Supported: No
Socket Type: AM4
Special Features: None
Storage Interface Type: SATA 3
Support Memory Type: DDR4
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Workstation,Scientific Computing
With CPU: No

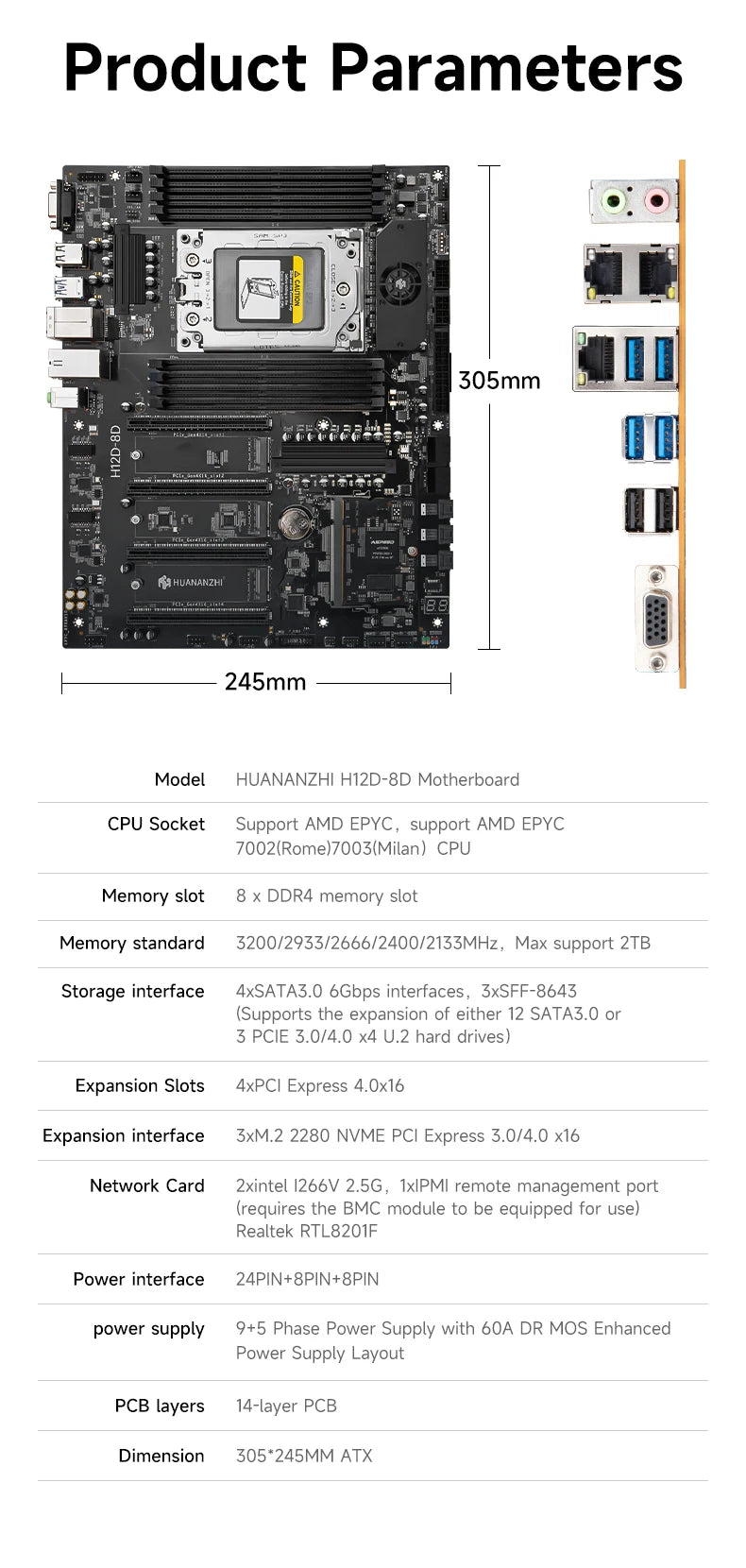

Specifications:
Model:HUANANZHI H12D 8D Motherboard (With BMC module)
Main chipset:AMD series ... Etc chipset shipped randomly
CPU Socket:AMD EPYC Platform Processor Supports AMD EPYC 7002 (Rome) 7003 (Milan) processor
Memory slot:8 x DDR4 memory slot
Memory standard:Support 8 channel DDR4 3200/2933/2666/2400/2133MHz Memory(Depends on CPU),Max support 2TB
Storage interface:4xSATA3.0 6Gbps interfaces,3xSFF-8643(Supports the expansion of either 12 SATA 3.0 6Gbps ports or 3 PCIE 3.0/4.0 x4 U.2 hard drives)
Expansion Slots:4xPCI Express 3.0/4.0 x16

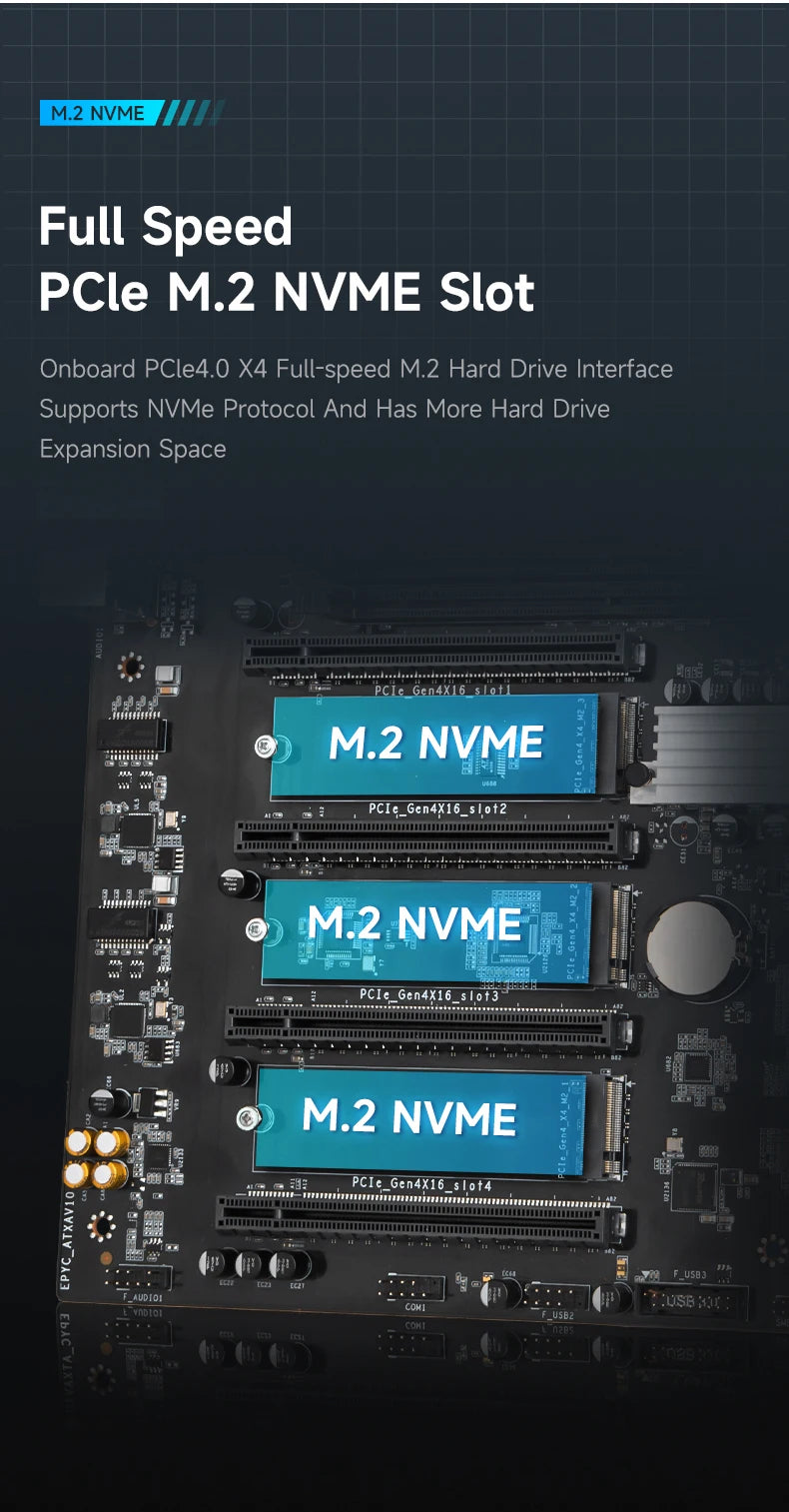

Expansion interface:3xM.2 2280 NVME PCI Express 3.0/4.0 x16
Soud Track:Realtek High Fidelity Audio
Network Card:2xintel I266V 2.5G,1xIPMI remote management port (requires the BMC module to be equipped for use)
Power interface:24PIN+8PIN+8PIN
FAN PIN:6xFAN PIN,CPU_FAN1 SYS_FAN Temperature control adjustment can be set through the BIOS
SYS_FAN1 to SYS_FAN4 need to be adjusted through the BMC management interface."

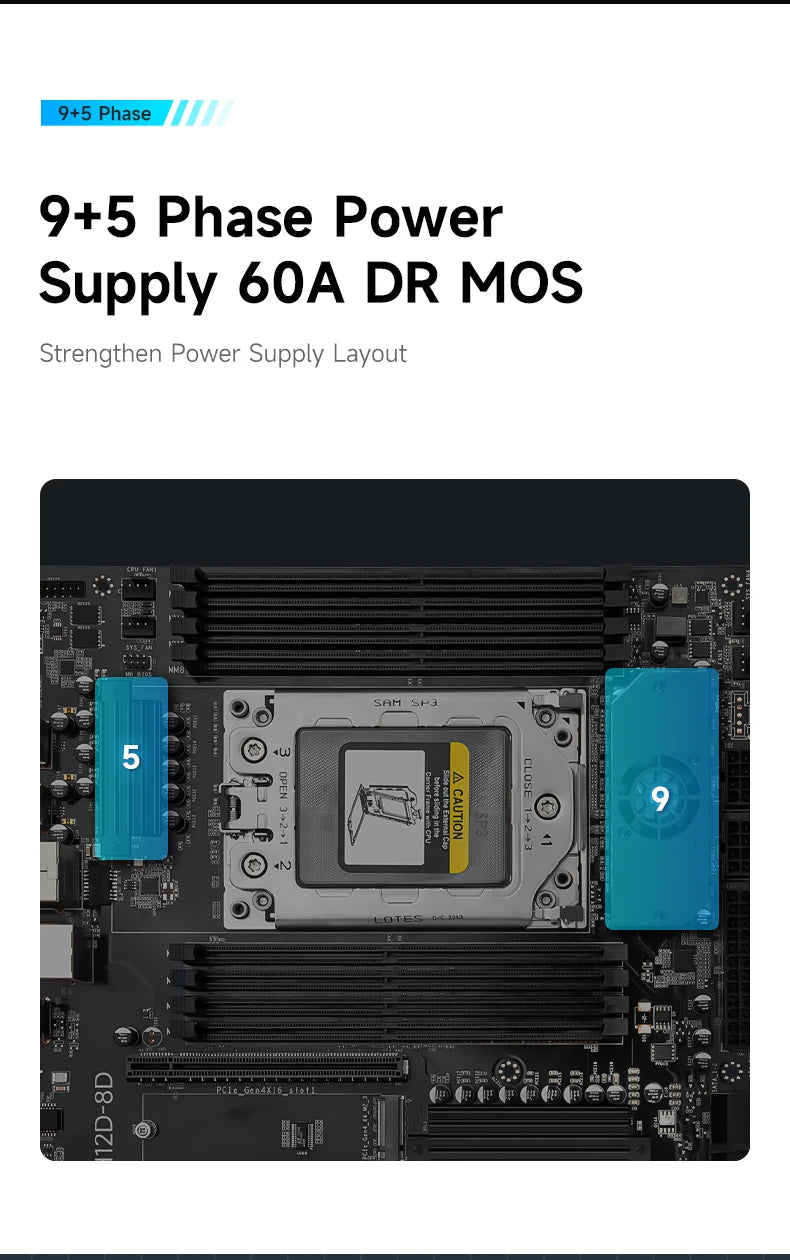

power supply:9+5 Phase Power Supply with 60A DR MOS Enhanced Power Supply Layout
PCB layers:14-layer PCB
Dimension:305*245MM ATX

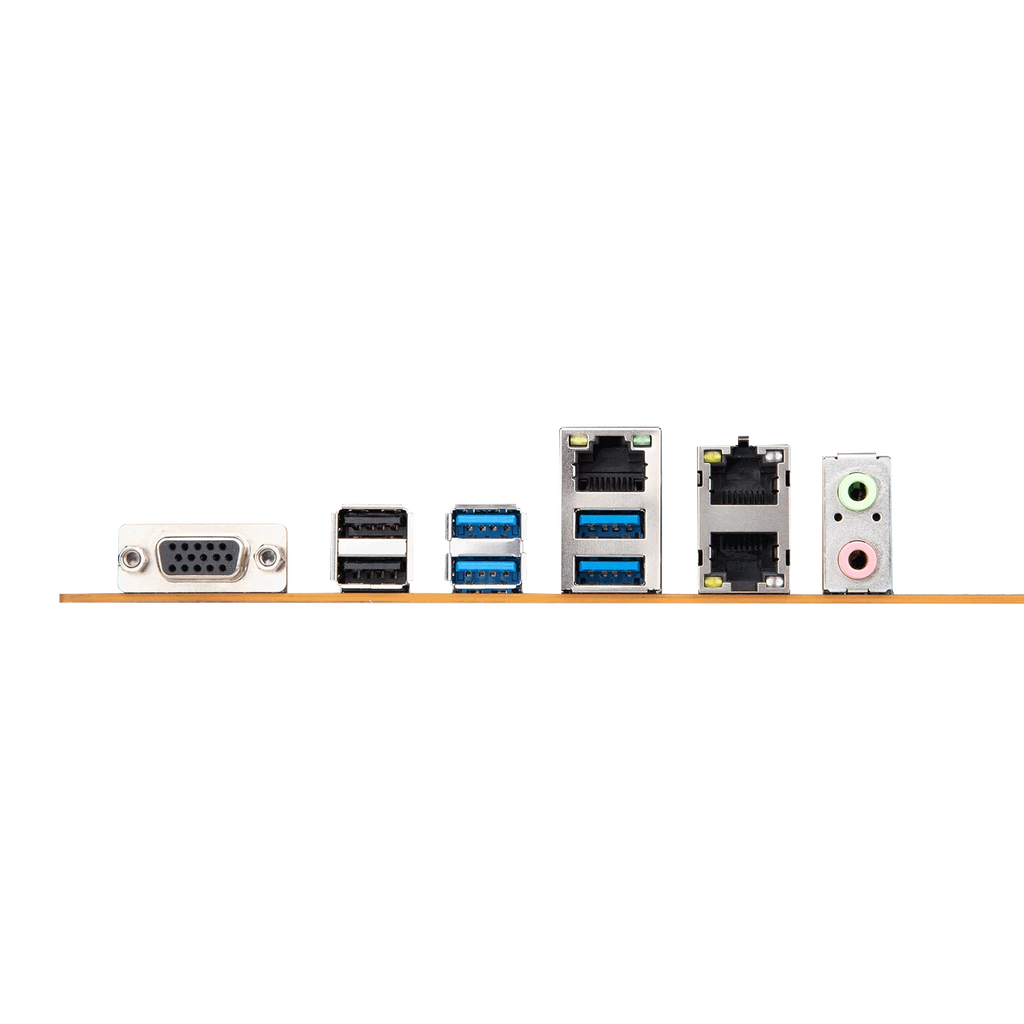

Rear panel interface:4xUSB3.2 Gen1,2xUSB2.0,1xVGA,3x RJ45,1x2-hole audio interface
Front panel interface:1 xUSB3.2 Gen1 PIN,1x USB2.0 PIN,1 x Front audio PIN,1 xCOM PIN,1xSMBUS PIN,1xNCSI PIN,1xPMBus PIN,1xMB_BIOS PIN,1xDE_BUG diagnostic card,1xPower-on/Restart PIN
Mgmt Console:supporting IPMI 2.0
Support system:Windows/Linux
BIOS:AMI UEFI BIOS













Before Packaging
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
