HUANANZHI H12D 8D Motherboard Set With AMD EPYC 7352 CPU 8*64GB DDR4 Support 8 Channel Memory Dual 2.5G Network IPMI BMC Module
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45
Battery Included: No
Brand Name: wafu
Chipset: AMD A88
Chipset Manufacturer: AMD
Form Factor: ATX
Hign-concerned Chemical: None
Maximum Ram Capacity: 512GB
Memory channel: Four
Number Of Memory Slots: 8
Number of M.2: 3
Number of PCI: 0
Number of PCIe x 16: 4
Onboard LAN: 2x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Processor compatibility: AMD Others
RAID Supported: No
Socket Type: AM4
Special Features: None
Storage Interface Type: SATA 3
Support Memory Type: DDR4
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Workstation,Scientific Computing
With CPU: No
Note: There are Four purchase options
Please select the correct option to purchase, we will ship according to the selected option
1. Motherboard option: only one motherboard
2. Motherboard+RAM option:only one motherboard+8*64GB DDR4 2666Mhz
4. Motherboard+CPU+RAM option:Includes motherboard +AMD EYPC 7352 cpu +8*64GB DDR4 2666Mhz ram
Specifications:

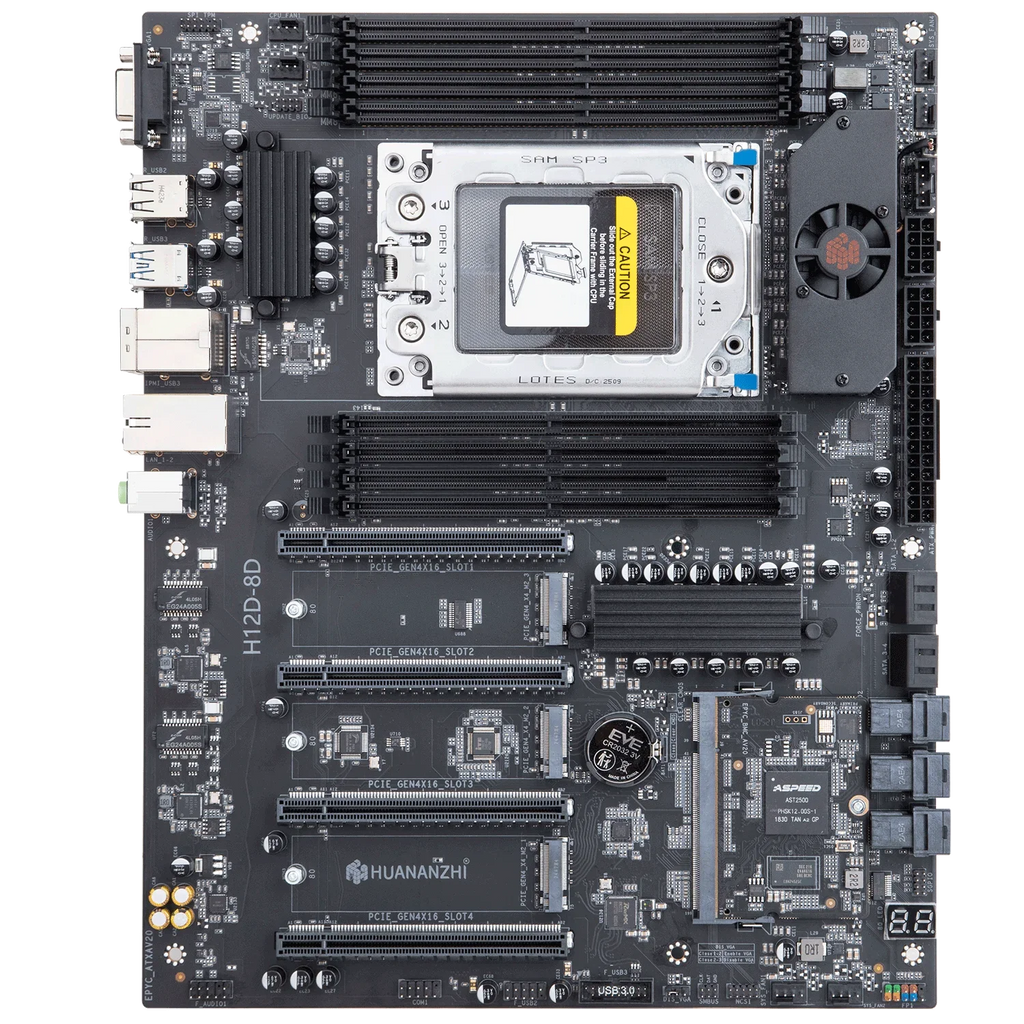

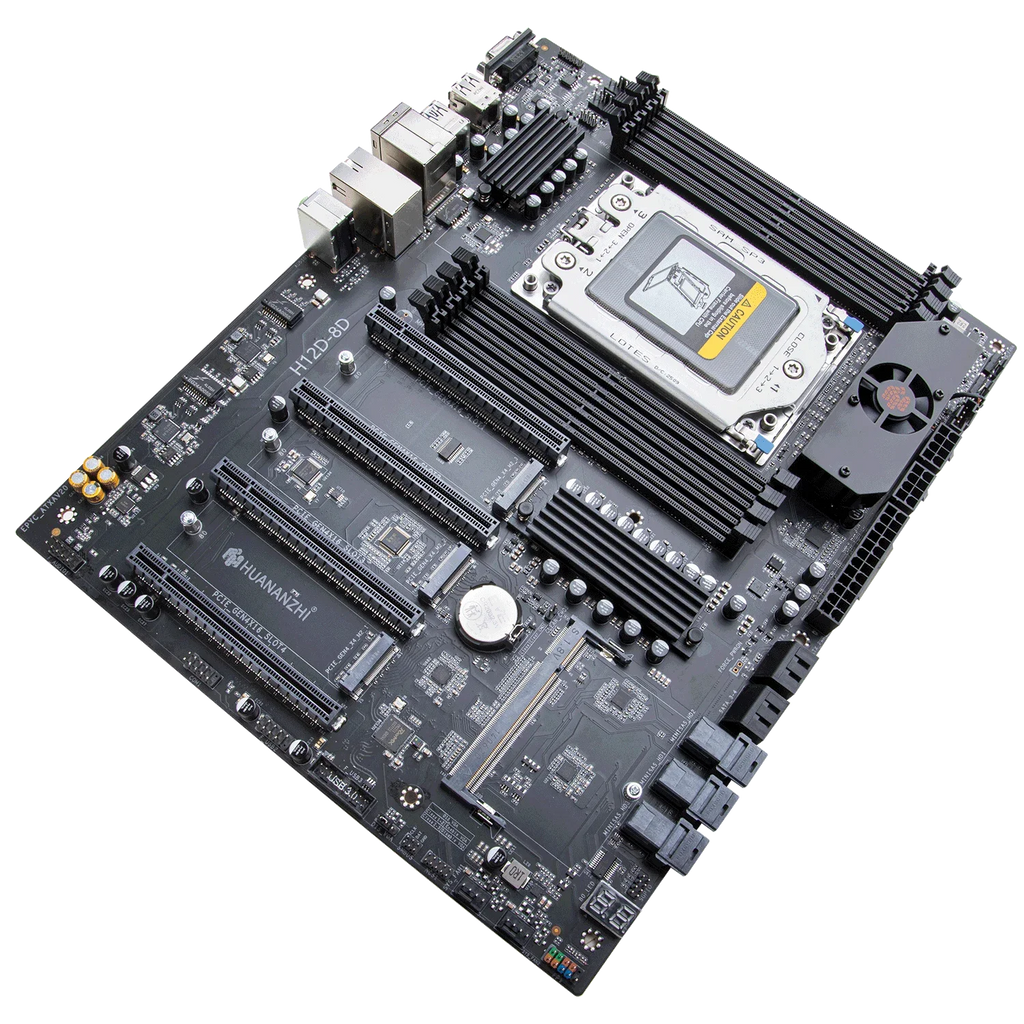

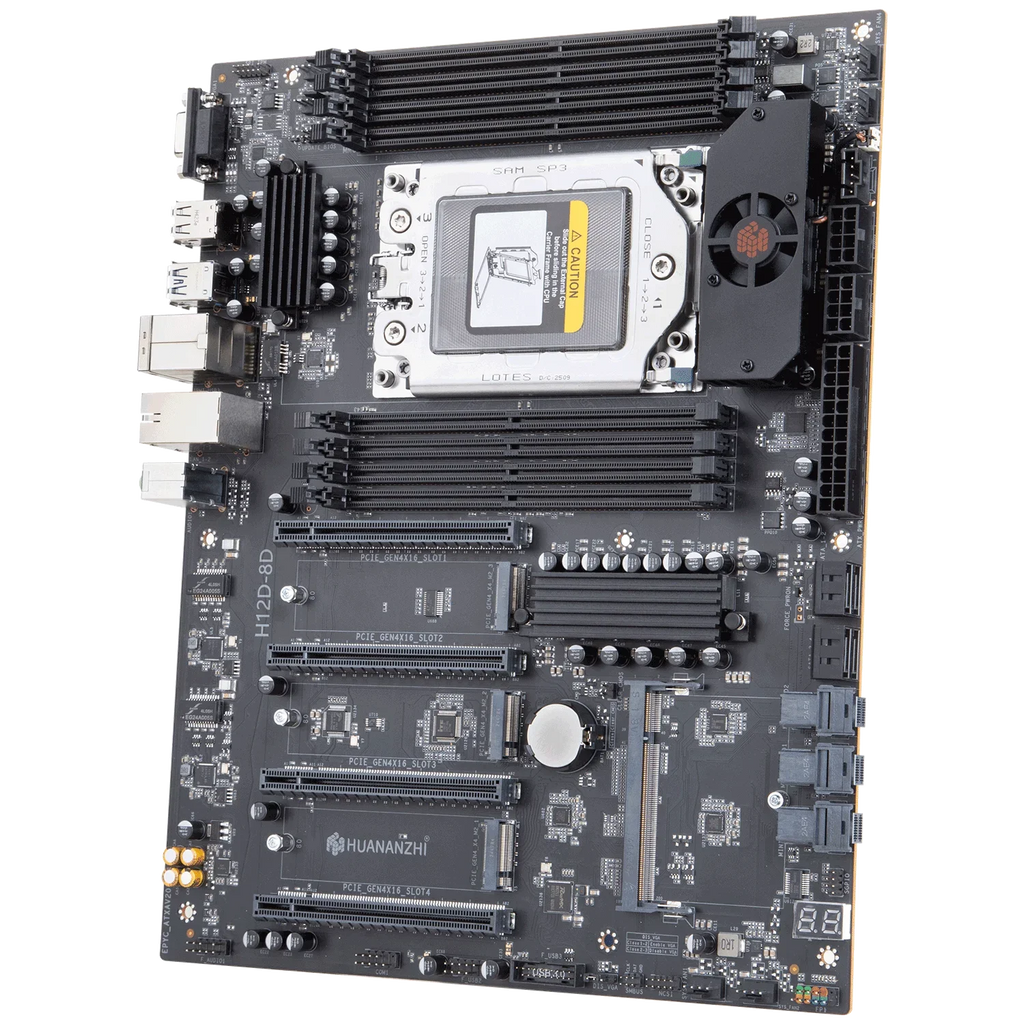

Model:HUANANZHI H12D 8D Motherboard (With BMC module)
Main chipset:AMD series ... Etc chipset shipped randomly
CPU Socket:AMD EPYC Platform Processor Supports AMD EPYC 7002 (Rome) 7003 (Milan) processor
Memory slot:8 x DDR4 memory slot
Memory standard:Support 8 channel DDR4 3200/2933/2666/2400/2133MHz Memory(Depends on CPU),Max support 2TB
Storage interface:4xSATA3.0 6Gbps interfaces,3xSFF-8643(Supports the expansion of either 12 SATA 3.0 6Gbps ports or 3 PCIE 3.0/4.0 x4 U.2 hard drives)
Expansion Slots:4xPCI Express 3.0/4.0 x16
Expansion interface:3xM.2 2280 NVME PCI Express 3.0/4.0 x16
Soud Track:Realtek High Fidelity Audio
Network Card:2xintel I266V 2.5G,1xIPMI remote management port (requires the BMC module to be equipped for use)
Power interface:24PIN+8PIN+8PIN
FAN PIN:6xFAN PIN,CPU_FAN1 SYS_FAN Temperature control adjustment can be set through the BIOS
SYS_FAN1 to SYS_FAN4 need to be adjusted through the BMC management interface."
power supply:9+5 Phase Power Supply with 60A DR MOS Enhanced Power Supply Layout
PCB layers:14-layer PCB
Dimension:305*245MM ATX

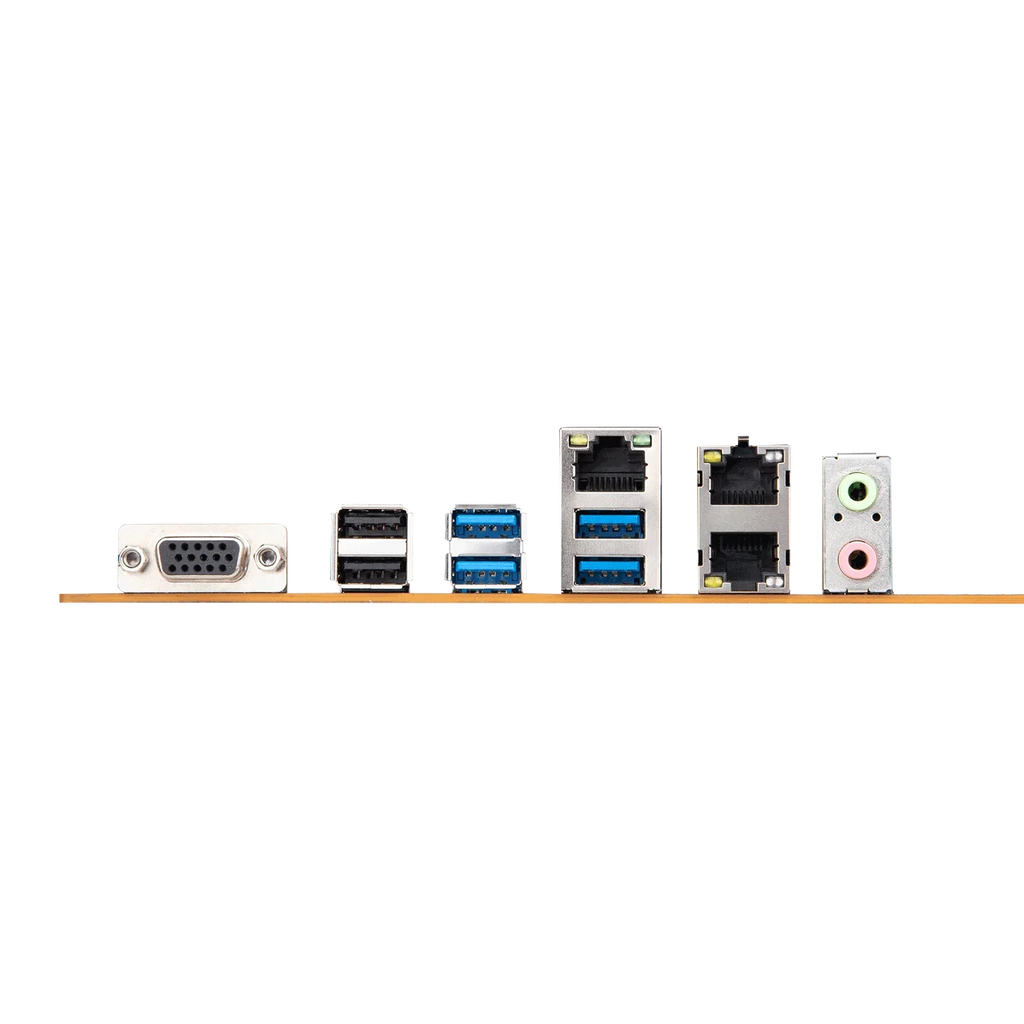

Rear panel interface:4xUSB3.2 Gen1,2xUSB2.0,1xVGA,3x RJ45,1x2-hole audio interface
Front panel interface:1 xUSB3.2 Gen1 PIN,1x USB2.0 PIN,1 x Front audio PIN,1 xCOM PIN,1xSMBUS PIN,1xNCSI PIN,1xPMBus PIN,1xMB_BIOS PIN,1xDE_BUG diagnostic card,1xPower-on/Restart PIN
Mgmt Console:supporting IPMI 2.0
Support system:Windows/Linux
BIOS:AMI UEFI BIOS
Note:
1: The CPU is either disassembled or brand new, shipped randomly, and tested well
2. Memory is a brand new product with good testing results
3.We will conduct testing and shoot videos before shipment to ensure the quality of the product
Buying instructions:
1. Due to manual measurement, please allow a difference of 1-3mm.
2. Due to differences in display and lighting, there may be slight differences in images and products. Thank you for your understanding.
3. For tax issues, some countries need to bear their own taxes to ensure whether their country needs customs clearance and has the ability to do so
4. The battery in the motherboard photo will be removed before shipment
5. Please carefully determine the product combination you need, I can only send the products according to the options you ordered
