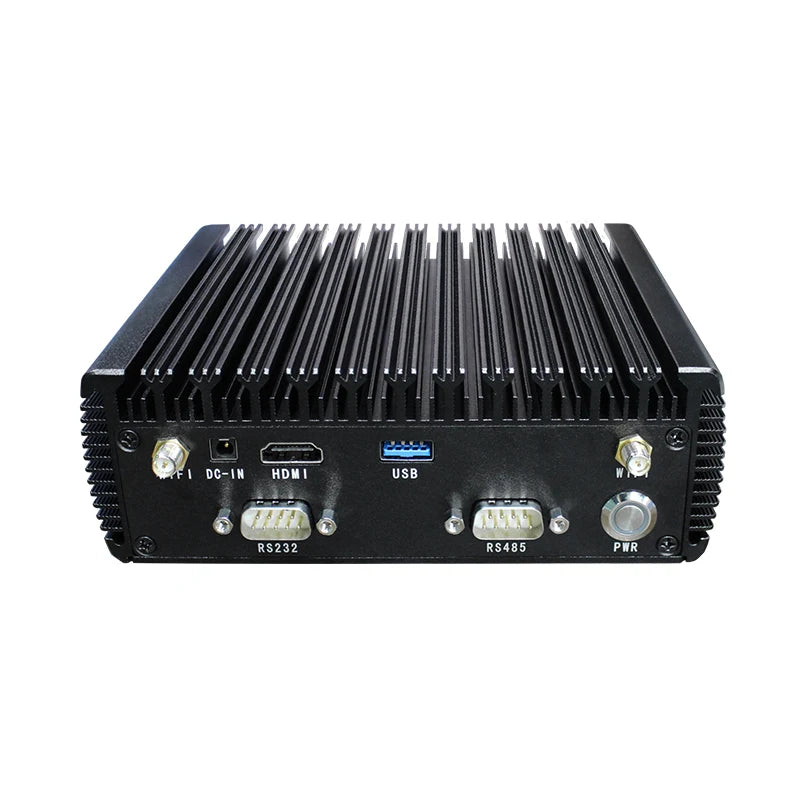

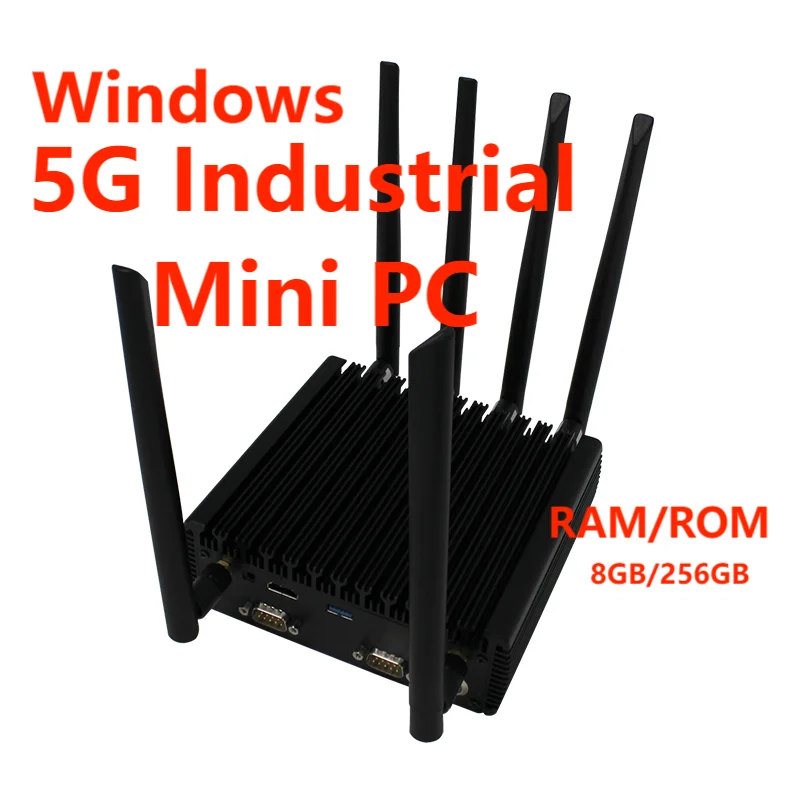

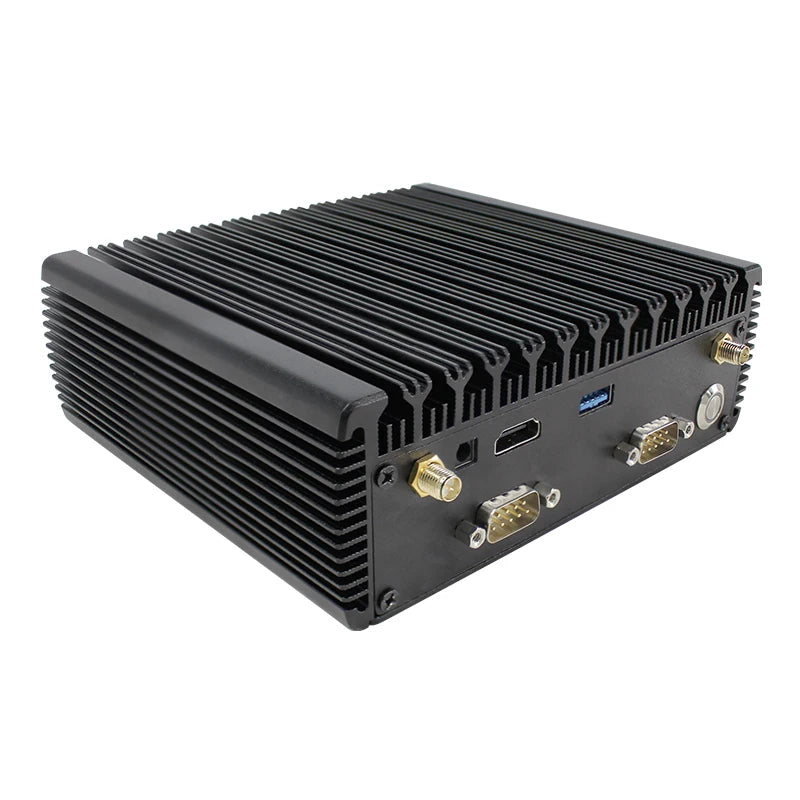

Intel Celeron N5100 Windows 5G Industrial Mini PC 8GB RAM 256GB ROM Rugged LTE WiFi BT4.0 Aluminum Metal Mini Computer
SPECIFICATIONS
Battery Included: Yes
Brand Name: sincoole
CPU: Intel Celeron N5100 4 cores,1GHz, up to 2.8GHz
Certification: CE
Color: black
Hign-concerned Chemical: None
Model Number: SMP01-J
OS: Windows 10Pro
Origin: Mainland China
Package: Yes
Type: Embedded Computer
WWAN: 5G,WIFI,BT
ram/rom: 8GB /256GB
5G dual network port mini embedded industrial computer microcomputer host industrial router industrial computer
The SMP01 series mini PC is a relatively small and compact microcomputer host. It can save desktop space. Although its appearance is small, it can have the same functions as a general host. Compared with notebooks and tablets, the SMP01 series The mini host can freely choose a monitor for use. It is usually used with an external large-screen monitor. The look and feel and office experience are better, and it has more expansion ports, such as: the most common USB interface, HDMI, network port, LTE 5G , and you can also freely customize industrial control interfaces, such as RS232, RS485, RS422, CAN bus interface and other special interfaces.
Although the body of the SMP01 series mini host is relatively compact, in terms of performance, compared with the tablet series, this model has improved its CPU performance to a great level. Taking the JP8 motherboard as an example, the CPU is fully loaded on the SMP01 host. Its main frequency can still be maintained at around 2.5GHz. In specific usage scenarios, the mini host can exert great application charm. A mini host that is only the size of a palm can also have powerful performance, is easy to carry, and saves space. , can become a powerful part of corporate office, home entertainment, and work productivity.
Item |
Parameter |
OS |
Windows 10 Pro,(Ubuntu optional) |
CPU |
Intel Celeron N5100 |
GPU |
Intel UHD Graphics 24 EUs (Jasper Lake) |
RAM/ROM |
8GB/256GB |
LTE |
MeiGSRM821 |
WIFI |
802.11b/g/n/ac/ax wireless internetWireless AP ( Mobile AP )2.4G, 5G |
Bluetooth |
4.0 version, backward compatibility,Bluetooth/WIFI 2-in-1 |
Sensor |
Acceleration Sensor |
Size |
155*140*52.6mm |
Weight |
1236g±2g: Net weight 1228g without 5G module |
Multi-media |
Photo Viewer:BMP, JPG, GIF, PNG |
Video Format:MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP to 1080P) | |
Audio Format:MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS | |
Language |
multi language |

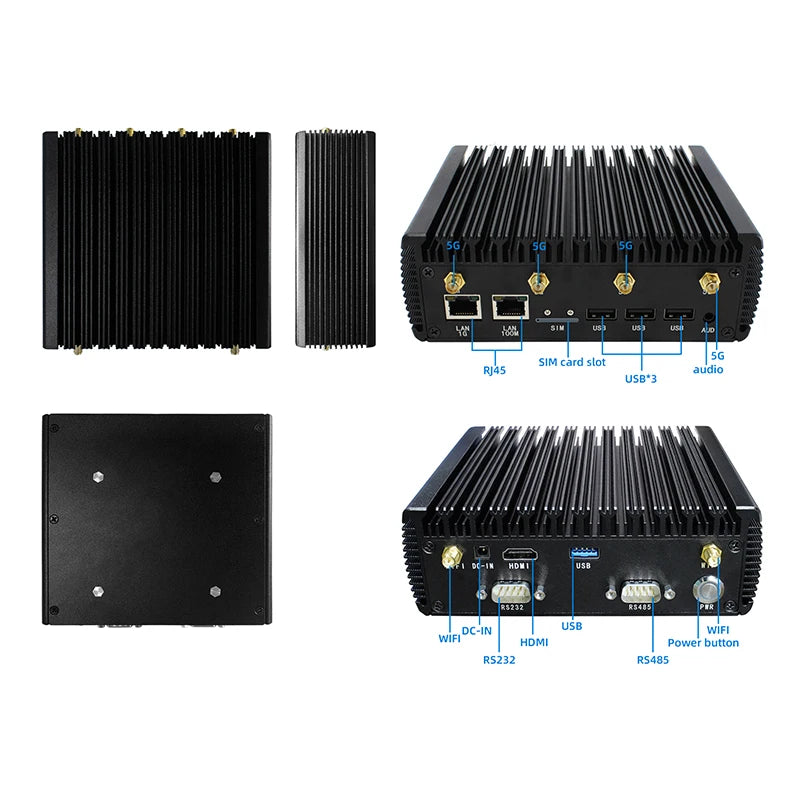

Interface |
1. DC 12V 3A ∮4.0mm |
Button |
Power |
